KEL

Pitch: 0.5 mm
Positions: 30, 40, 50, 60, 80, 100, 120, và140
Floating amount: ±0.5 mm theo hướng X và Y

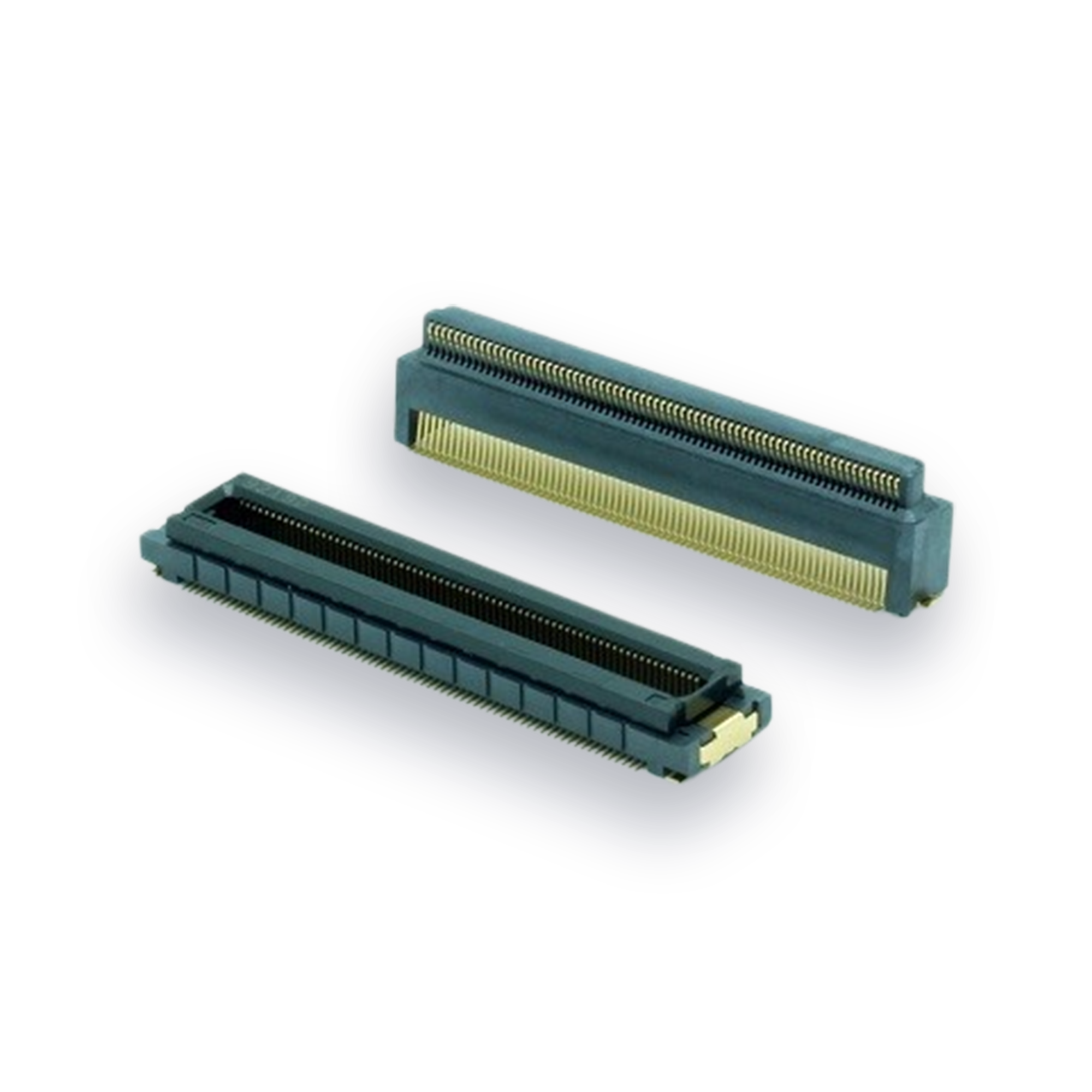

Nhỏ gọn và đa năng

Dòng DY Series có bước chân hẹp 0,5 mm và khả năng dịch chuyển ±0,5 mm theo hướng X và Y, giúp giảm kích thước thiết bị.

Pitch: 0.5mm
Positions: 30, 40, 60, 80, 100, 120
Floating amount: ±1.2mm in XY direction

Pitch: 0.5mm
Positions: 30, 40, 60, 80, 100, 120, and 140
Floating amount: ±0.7mm in XY direction

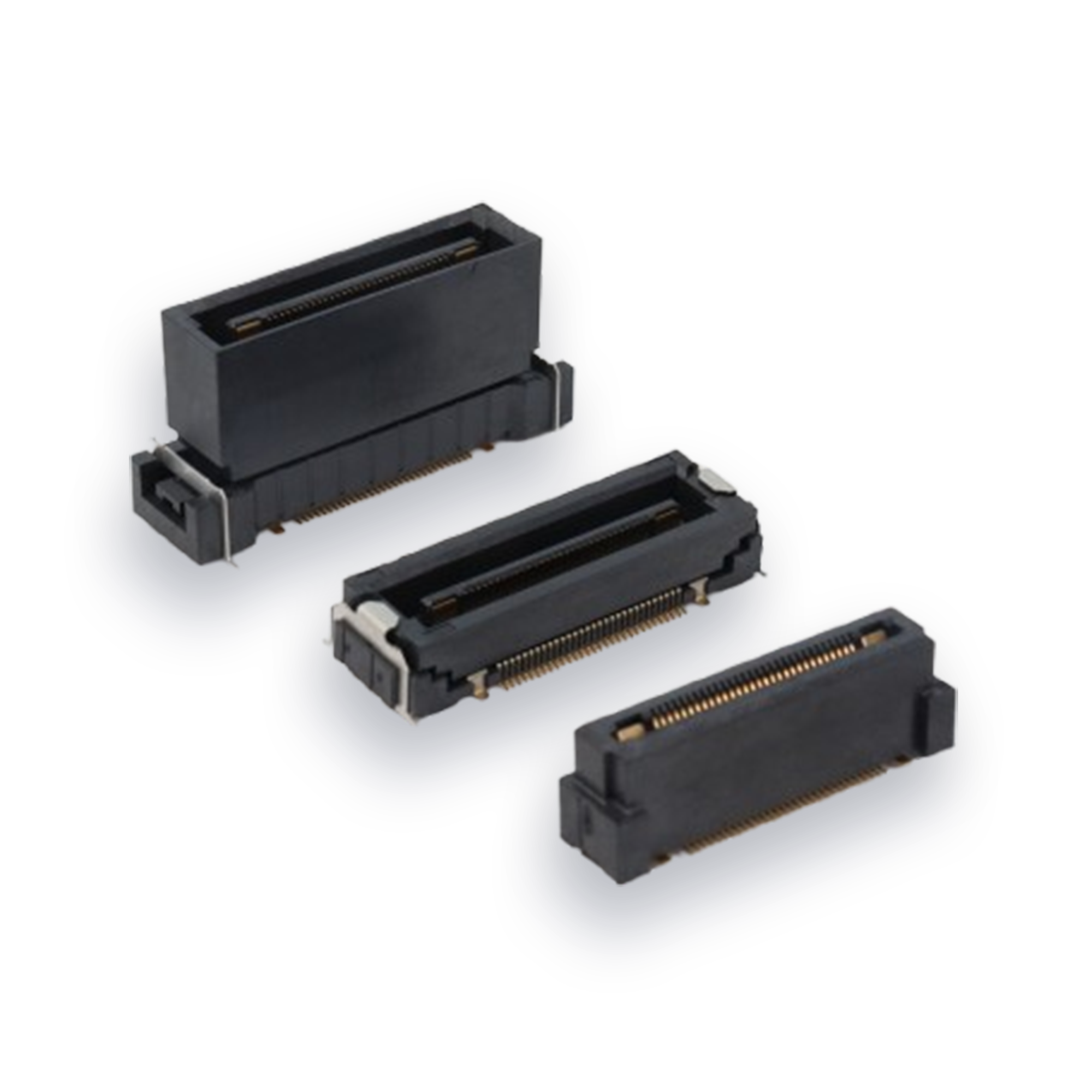

High-Speed Transmission compatible 0.5mm pitch floating connector / type with power terminal

Our DT-E Series support 0.5mm pitch floating connector type with power terminal. There are 4 terminals for power supply, and current rating is 6.0A per terminal.

Pitch: 0.5mm
Positions: 30, 40, 100
Floating amount: ±0.5 mm in XY directions

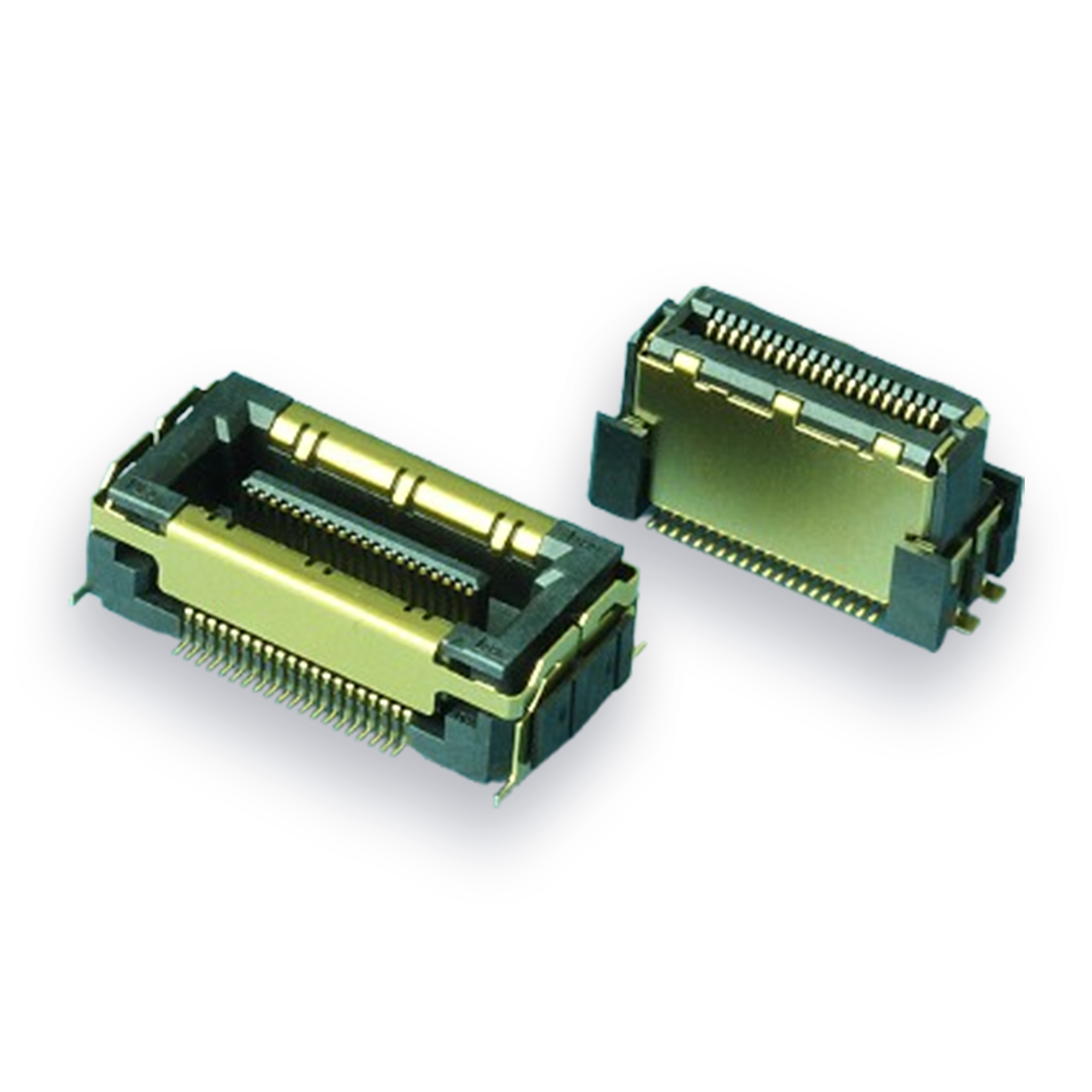

High-Speed Transmission compatible 0.5mm pitch floating connector / shell type

Our DT-S Series support high-speed serial signal transmission equivalent to the SATA standard while supporting ESD/EMC countermeasures.

Pitch: 0.5mm
Positions: 60
Floating amount: ±1.0mm in XY directions

High-Speed Transmission/ High Temperature Resistance

Our DT1213 Series support high-speed serial signal transmission equivalent to the SATA standard with high temperature resistance. Operating temperature is -40℃ to 125℃.

Pitch: 0.5mm
Positions: 30, 40, 60, 80, 100, 120, and 140
Floating amount: ±1.0 mm in XY directions

High-Speed Transmission

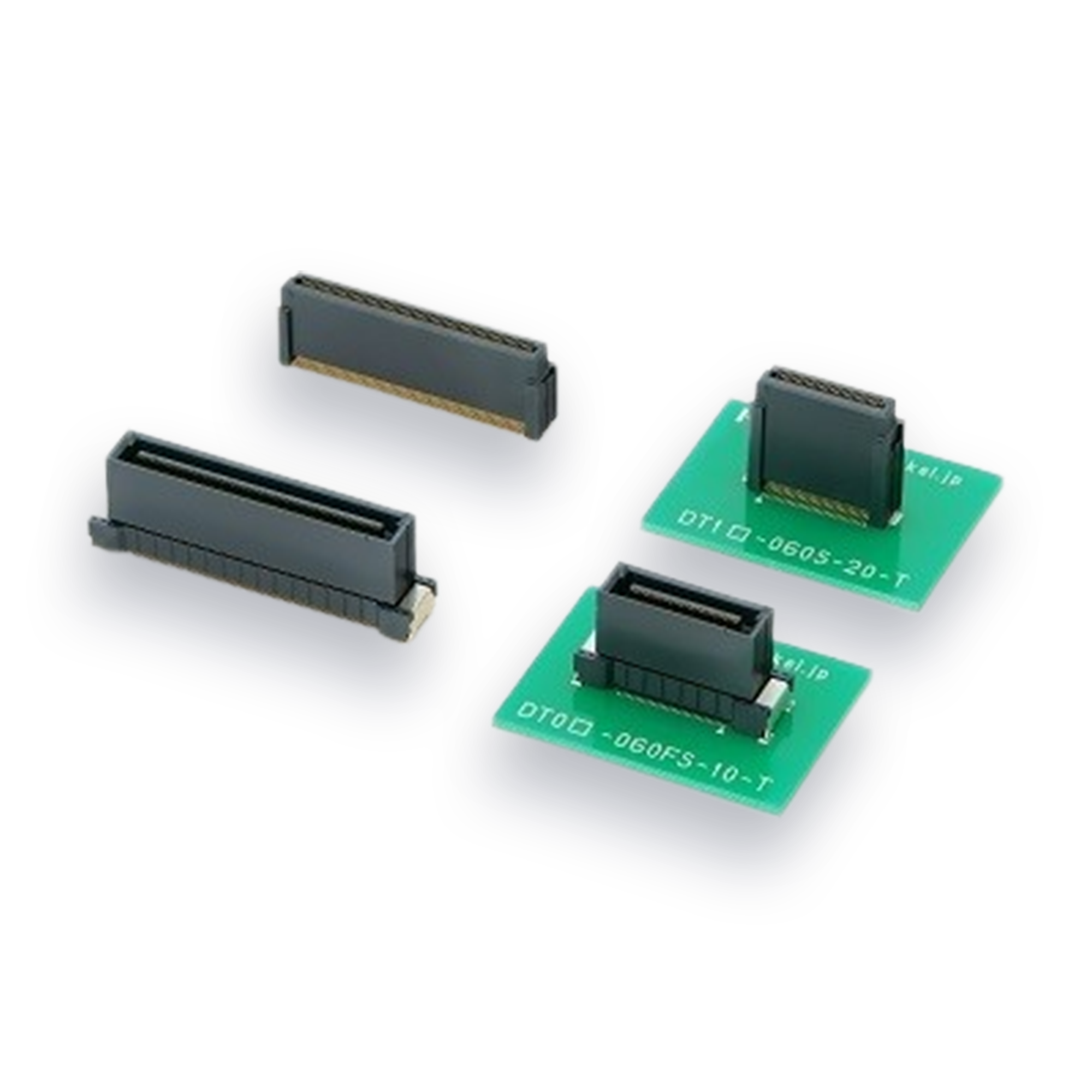

The DT-FS Series is a 0.5 mm pitch board-to-board floating connector with the receptacle stack height raised by 10 mm.

Pitch: 0.5mm
Positions: 30, 40, 60, 80, 100, 120, 140, 160, and 240
Floating amount: ±0.5 mm in XY directions

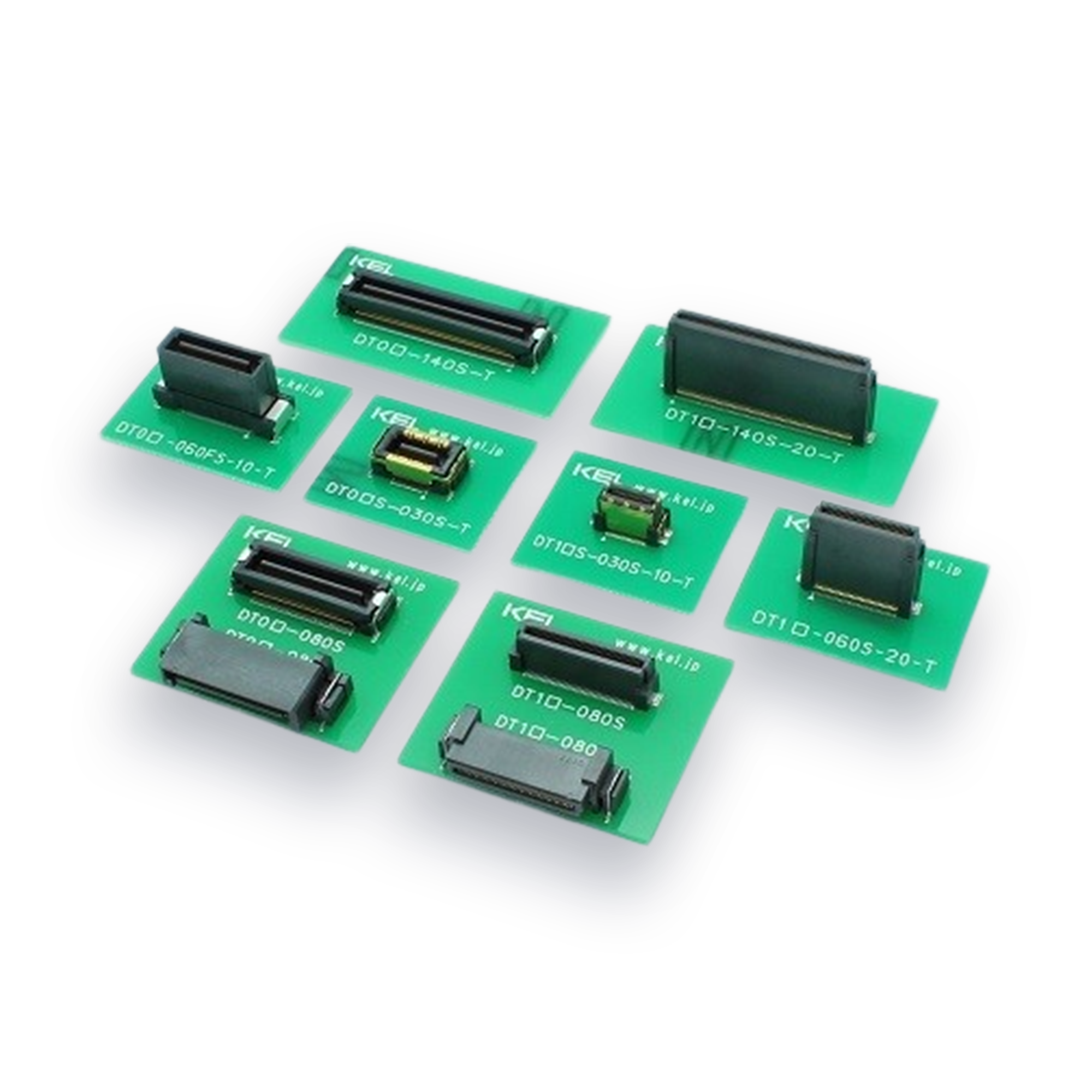

High-Speed Transmission

Our DT Series support high-speed serial signal transmission equivalent to the SATA standard while having the function of a 0.5 mm pitch floating connector.

Pitch: 0.5mm
Positions: 50, 60, 80, 100, 120, 140
Floating amount: ±0.5 mm in XY directions

Compact and Versatile / High Temperature Resistance

High temperature resistance type of our main product 0.5mm pitch printed circuit board-to-printed circuit board floating connector DY series. It can be used at temperatures up to +105°C.

Pitch: 0.4mm
Positions: 40, 80, 100, 120, 140, 160, 180
Floating amount: ±0.4 mm in XY directions

Industry’s Top-Class Narrow Pitch

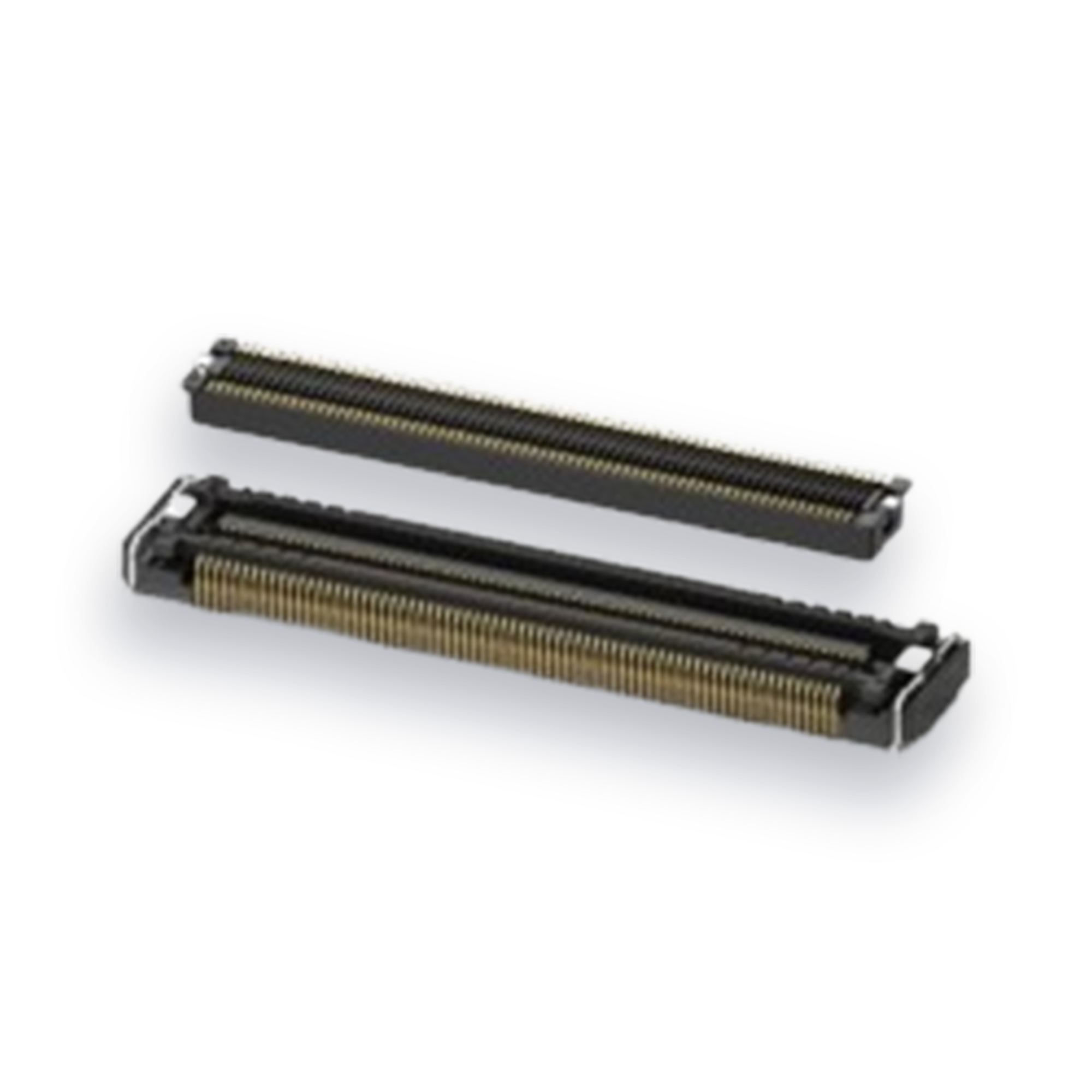

The DUS series can move ±0.4mm in the XY directions, and can absorb deviations in equipment assembly tolerances.

Pitch: 0.4mm
Positions: 80, 110, 120, 140, and 200
Floating amount: ±0.4 mm in XY directions

Industry’s Top-Class Narrow Pitch

Our DU series has achieved the industry’s top-class narrow pitch of 0.4 mm, making them ideal for small devices such as high-performance cameras.

Pitch: 1.27 mm
Positions: 20, 26, 30, 32, 34, 40, 50, 52, 60, 68, 80, and 100

1.27 mm pitch connector

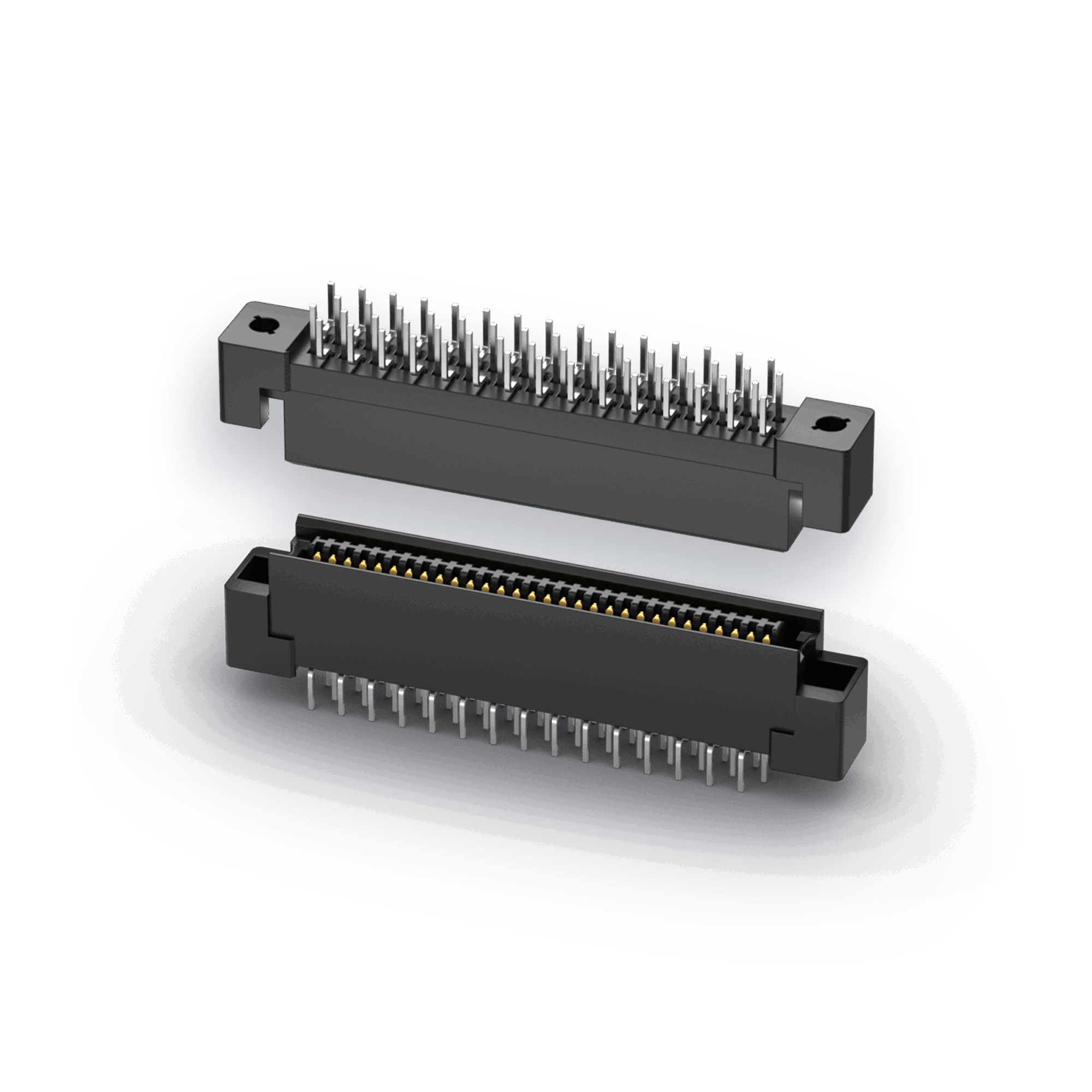

The 8800 Series is a 1.27 mm pitch board-to-board connector. It is available in straight and right-angle types, with or without fixing clips, and also with power contacts.

Pitch: 1.27mm
Positions: 120, 140, 160, 180, 200

1.27mm pitch connector/ multi pin type

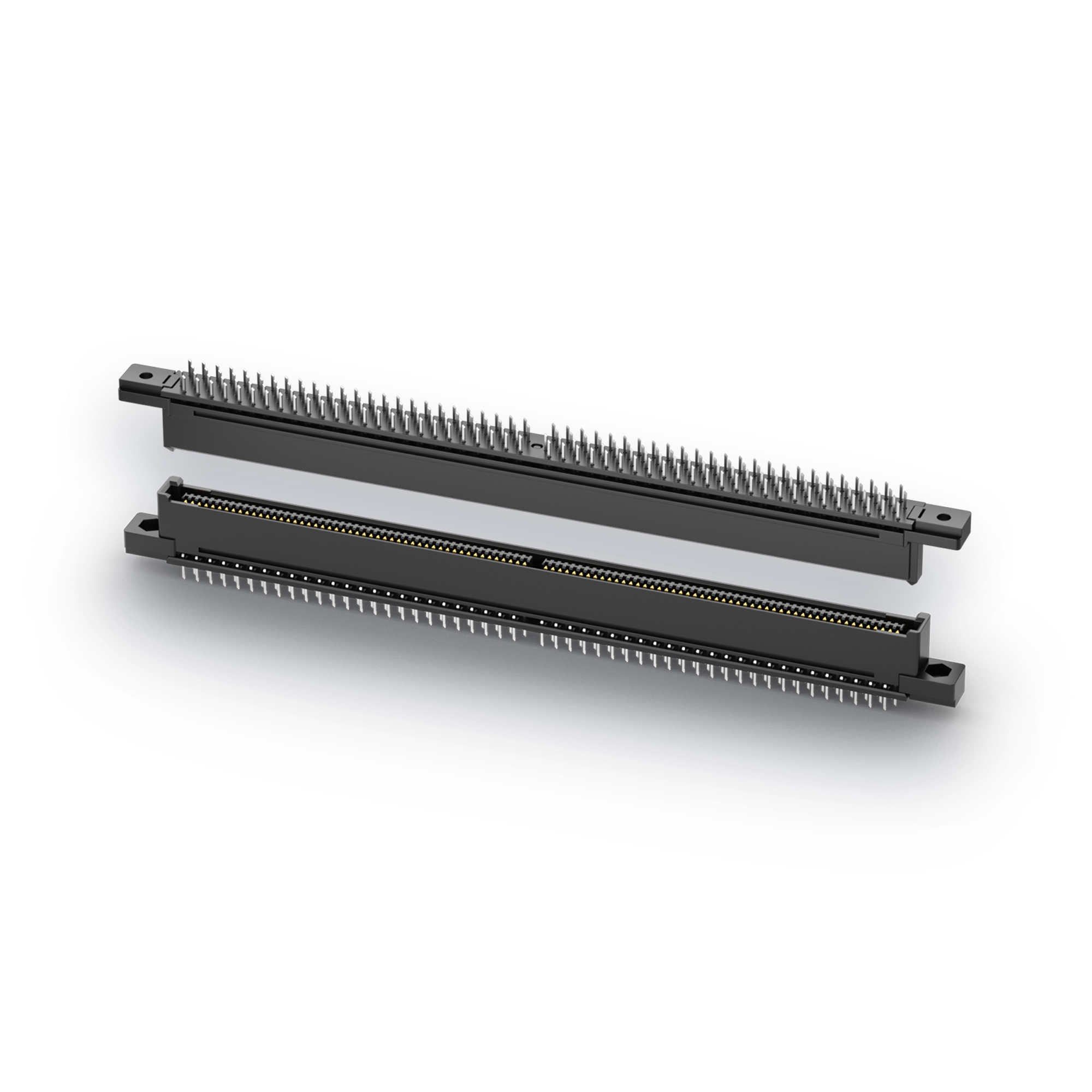

The 8806/8807 series is a multi pin pin type 1.27mm pitch printed circuit board-to-printed circuit board connector offering straight/right angle configuration.

Pitch: 1.27mm
Positions: 20, 30, 40, 50, 60, 80, 100

1.27 mm pitch 2-piece connector/Flexible stack type

The 8903N-FS series is a 1.27mm pitch printed circuit board-to-printed circuit board connector with a choice of stack heights. It can be mated with the plug side of the 8900 series.

Pitch: 1.27mm
Positions: 20, 30, 40, 50, 60, 80, 100, and 120

1.27 mm pitch connector/Low-profile type

The 8900 Series is a 1.27 mm pitch, low-profile, board-to-board connector. The straight type has five variations of height ranging from 7 mm to 12 mm. It is also available with or without a metal hook.

Pitch: 1.27mm
Positions: 20, 30, 40, 50, 60, 80, 100, and 120

1.27 mm pitch connector/Low-profile type

The 8900MS series is a 1.27mm pitch printed circuit board-to-printed circuit board connector for low profile profile SMT. It can also be mated with the DIP type of the 8900 series.

Pitch: 1.27mm
Positions: 40, 50, 60, 68, 80, 100

1.27 mm pitch 2-piece connector/Flexible stack type

The 8903N-FS series is a 1.27mm pitch printed circuit board-to-printed circuit board connector with a choice of stack heights. The height is available from 20mm to 32mm. It can be mated with the plug side of the 8900 series.

Pitch: 0.635 mm
Positions: 52, 60, 120, 140, 160, and 200

0.635 mm Pitch Connector

The 8600 Series is a 0.635 mm pitch board-to-board connector. It features small-size, multi pin, and high reliability, and it is the optimum product to contribute to downsizing and sophistication of equipment

Pitch: 0.635 mm
Positions: 60, 140, and 160

0.635 mm Pitch Connector / Eject-lock type

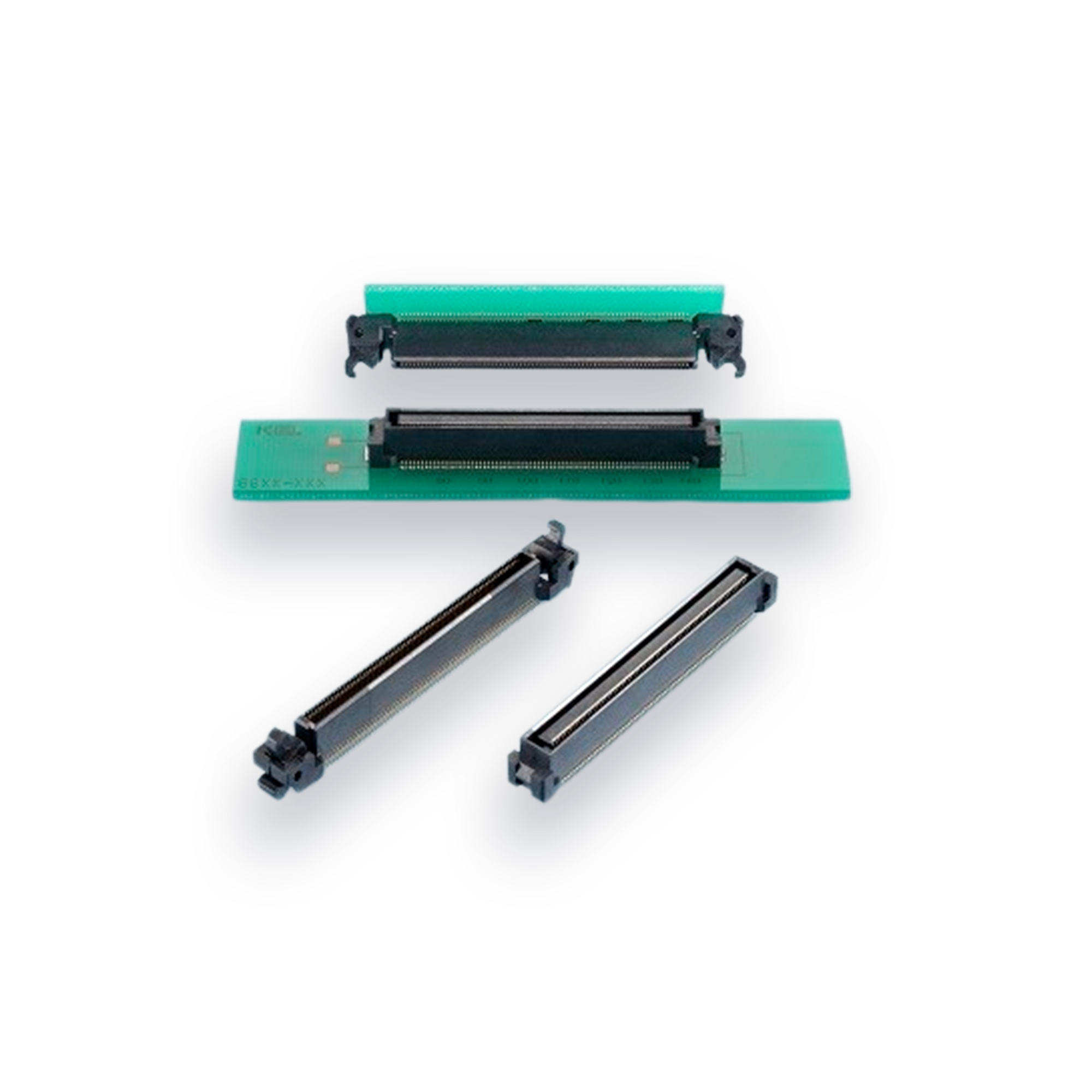

The 8602E Series is a 0.635 mm pitch board-to-board connector with a lock mechanism. The lock mechanism eliminates the need for fixing with screws, and the product assumes applications in memory modules and other applications for connection with small printed circuit boards.

Pitch: 1 mm
Positions: 30, 50, 80, 100, 120

The 87 series is a printed circuit board-to-printed circuit board 1.0mm pitch SMT connector. Achieved a volume ratio of 1/4 compared to conventional 1.27mm pitch connectors.

Pitch: 1 mm
Positions: 40, 50, 60, 80

The DJ series is a printed circuit board-to-printed circuit board 1.0mm pitch removable connector.
Hot-hot swap, hot swap-swappable products for inserting and removing HDDs, CD-ROMs, batteries, etc., while the power is on, enabling connection of frame ground between devices.
We also have a type with power pins on the left and right that are effective for supplying power to the battery pack, which is the best product for removable use.

Pitch: 2.54 mm
Positions: 44, 48, 56, 60, 72, 88, 100

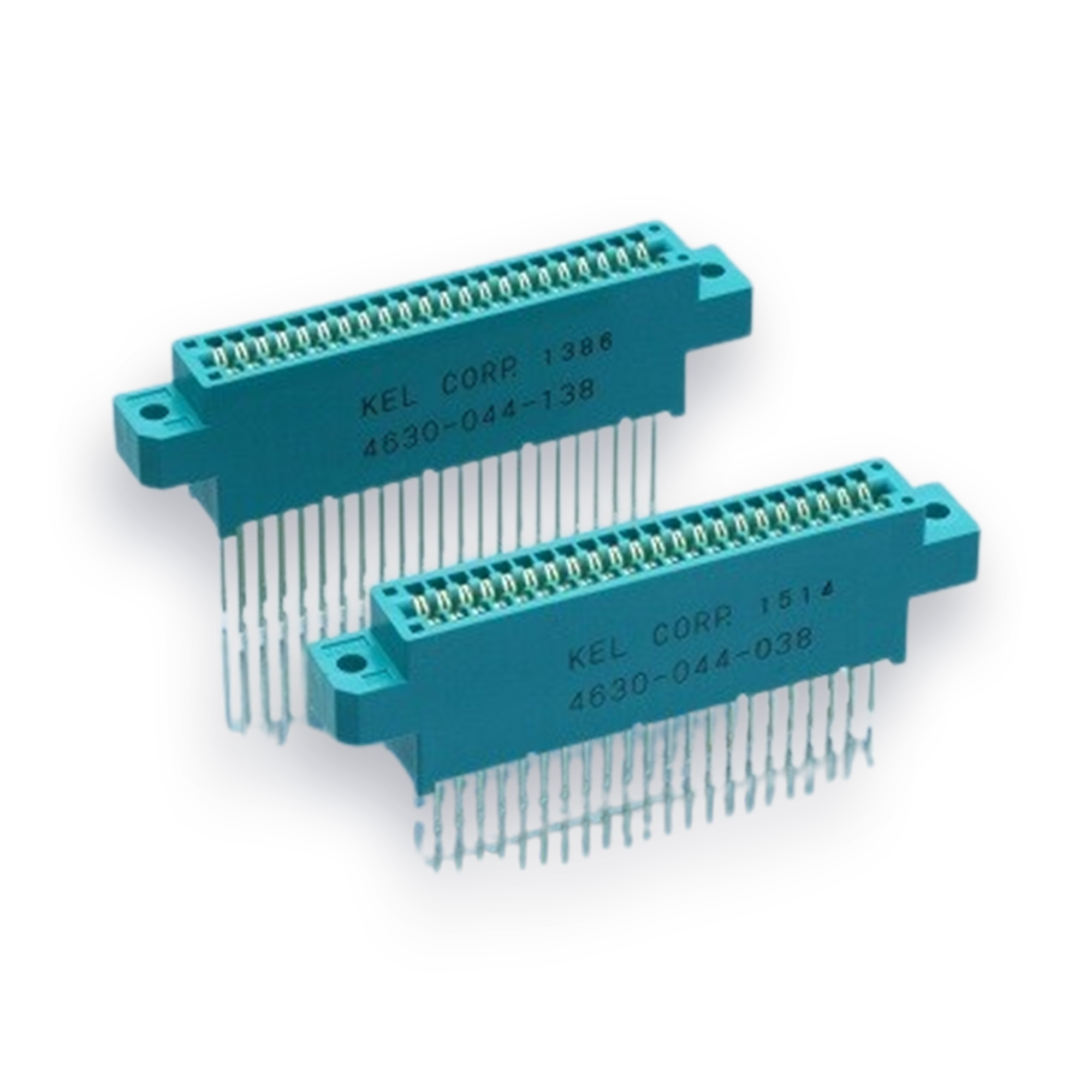

The 4630 series is a 2.54mm pitch card edge connector. Mainly used for industrial equipment.

Pitch: 2.54 mm
Positions: 32, 44, 48, 50, 64, 90, 96, and 100

The 8300/8400 Series is a 2.54 mm pitch board-to-board connector compliant with DIN Standards (DIN41612 and IEC603-2).
